| Part Number | 预览图 | Ppp (W) |
VRWM (V) |
VBRMin (V) |
VBRMax (V) |
IR (uA) |
CJ (PF) |
VC (V) |
IPP (A) |
Package | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DC1221P1L |  |
|
120 | 12 | 13.3 | -- | 0.2 | 7.5 | -- | 6 | DFN1006-2 |

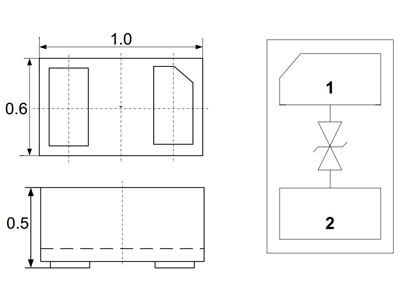

| DC1261P1 |  |
|
50 | 12 | 13.3 | -- | 0.2 | 3 | -- | 2.5 | DFN1006-2 |
| DC1511P1 |  |
|
300 | 15 | 16.5 | -- | 0.2 | 25 | -- | 9 | DFN1006-2 |
| DC1521P1 |  |
|
150 | 15 | 16.2 | -- | 0.2 | 8 | -- | 6 | DFN1006-2 |
| DC1541P1 |  |
|
300 | 15 | 16 | -- | 0.2 | 20 | -- | 12 | DFN1006-2 |
| DC2411P1 |  |
|
300 | 24 | 27 | -- | 0.2 | 20 | -- | 5 | DFN1006-2 |

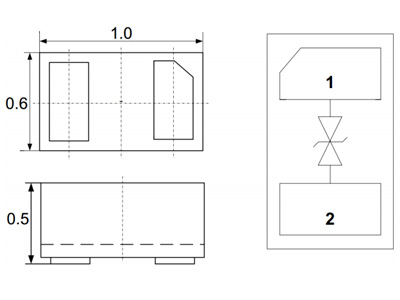

| DC2421P1L-4B |  |
|
180 | 24 | 27 | -- | 0.2 | 5 | -- | 5 | DFN1006-2 |

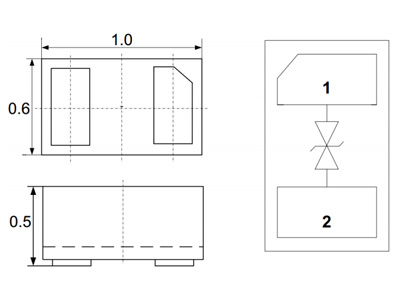

| DC2421P1L |  |
|
180 | 24 | 25 | -- | 0.2 | 5 | -- | 5 | DFN1006-2 |

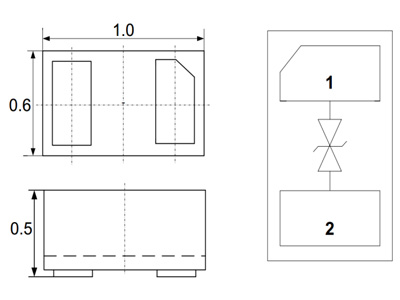

| DL0521P1L |  |
|
100 | 5 | 6.5 | 9.5 | 0.2 | 0.15 | -- | 4 | DFN1006-2 |

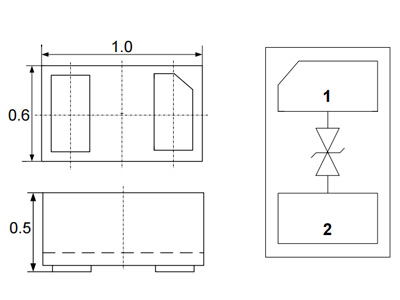

| DL0821P1 |  |
|
90 | 8 | 3.5 | -- | 0.2 | 0.3 | -- | 3.5 | DFN1006-2 |
| DL1221P1 |  |
|
80 | 12 | 13.5 | -- | 0.2 | 0.25 | -- | 2.5 | DFN1006-2 |

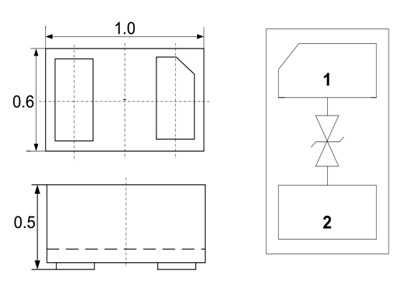

| DL1521P1 |  |
|
90 | 15 | 16.7 | -- | 0.2 | 0.3 | -- | 2.5 | DFN1006-2 |
