| Part Number | 预览图 | Ppp (W) |
VRWM (V) |
VBRMin (V) |
VBRMax (V) |
IR (uA) |
CJ (PF) |
VC (V) |
IPP (A) |
Package | |
|---|---|---|---|---|---|---|---|---|---|---|---|

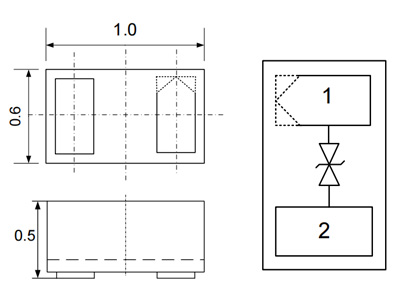

| DL3311P1S |  |
|
40 | 3.3 | 3.5 | -- | 0.2 | 0.35 | -- | 5 | DFN1006-2 |

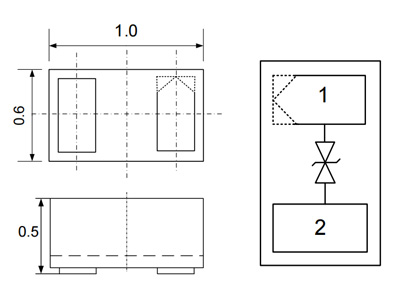

| DL3321P1S |  |
|
60 | 3.3 | -- | -- | 0.2 | 0.6 | -- | 12 | DFN1006-2 |

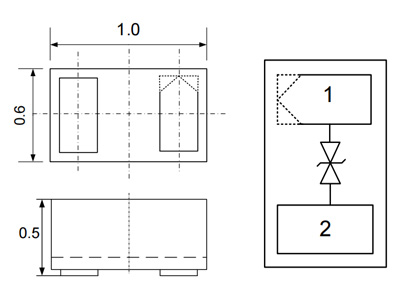

| DL3321P1S-W |  |
|
60 | 3.3 | -- | -- | 0.2 | 0.6 | -- | 12 | DFN1006-2 |
| DL0521P1 |  |
|
100 | 5 | 6.5 | 9.5 | 0.2 | 0.3 | -- | 5 | DFN1006-2 |

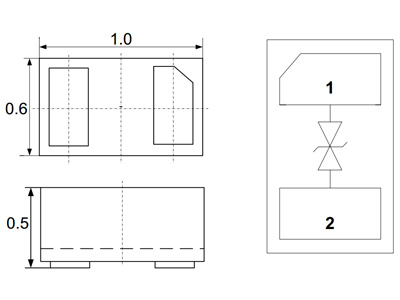

| DL0521P1LV |  |
|
80 | 5 | 6.5 | 9.5 | 0.2 | 0.3 | -- | 5 | DFN1006-2 |
| DL2413P1S |  |
|
35 | 24 | 26 | -- | 0.2 | 0.5 | -- | 5 | DFN1006-2 |
| DL2421P1 |  |
|
80 | 24 | 25 | -- | 0.5 | 0.3 | -- | 1.5 | DFN1006-2 |
| DL3321P1 |  |
|
100 | 3.3 | 5 | -- | 0.2 | 0.25 | -- | 4 | DFN1006-2 |

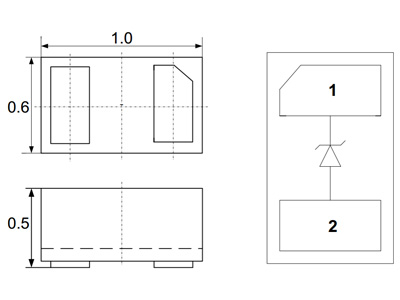

| DL3301P1 |  |
|
80 | 5 | 6 | -- | 0.5 | 0.8 | -- | 5 | DFN1006-2 |

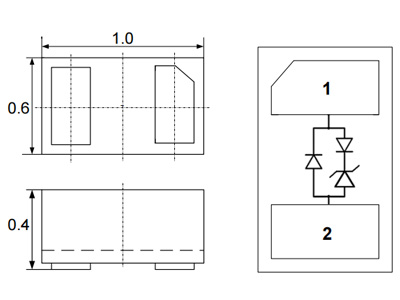

| DL0501P1L |  |
|
60 | 5 | 6 | -- | 0.5 | 0.3 | -- | 4 | DFN1006-2 |
| DL3301P1 | |
|
80 | 3.3 | 4.2 | -- | 0.2 | 0.6 | -- | 5 | DFN1006-2 |
